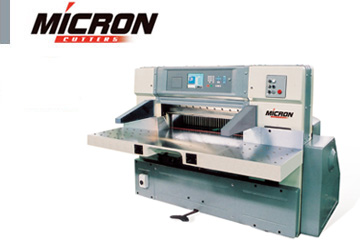

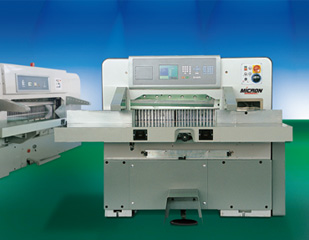

MICRON Micron Paper Cutters


Built with the Latest Technology, Quality Components, and a Proven Design
Micron paper cutters are manufactured by S.W.D. Ltd., the second largest producer of paper cutters in the world today.
With over 900 units installed in the U.S., and more than 2,000 units shipped each year, their reputation speaks for itself.
Micron paper cutters are built using modern manufacturing techniques in a facility incorporating state of the art CNC machine tools.
With more than 45 years of experience in manufacturing paper cutters, S.W.D. Ltd. has a proven track record of producing heavy duty paper cutters of the highest quality. S.W.D. Ltd. has received ISO 9001 certification (Reg. No. SC0197A145).
These paper cutters are designed for many years of troublefree operation at a very competitive price.




Chrome Table surface (main & side tables)
CE Labeled Infra-Red Beams (German made)
CE Electrical Components
Cutting process monitors
Emergency stop switch
Air table with blower
Self-locking worm gear, wear resistant
Ball screw and liner guide for backgauge moving
Built-in Gravity safety latch
Table slot-closing device
Side gauges fixed, right/left
Reliable CE Labeled Hydraulic System (German made)
Machine Overload Protection Mechanical System with Electrical Monitoring

Two-hand cut release, with time limitation and non-repeat device
Adjustable clamp pressure by hand switch at operation panel
Removable False clamp (to be fixed from the front side)
Covers for moving parts and hazardous areas
Two High Speed Steel Knives
Knife lifting device for quick knife change
Six plastic cutting sticks
Toolbox with complete set of tools, operation manual
One (1) Paper Jogging Block






S Series

The Micron S Series is a well-made, durable and reliable line of paper cutters offered in a full range of sizes from 30" to 86". All of our Micron paper cutters are built to last!

We also offer a full complement of cutting line equipment for increased speed and efficiency.

F Series

The Micron F Series offers the same dependable performance as the S Series, with improved styling and performance. Improved cutting speed results from the backgauge being able to move before the clamp is back in the top position, as well as the high-speed ball screw which moves the backgauge at a faster rate (18m/minute vs. 12m/minute). This translates to a 14% faster cutting cycle and higher productivity for busy shops. 10" TFT color touch screen-computerized back gauge control/USB interface for memory storage/Network & full CIP3/4 compatible.
Built-in Gravity
Safety Latch		 False Clamp German Hydraulic
System		 Ball Screw with
Liner Guide		 Microcut Computer
Control System





F Series
MC-36-F MC-45-F MC-54-F
Cutting width (mm) 920/36" 1,150/45" 1,370/54"
Max. Cutting Height (mm) 130/5.1" 165/6.5" 165/6.5"
Max. Cutting Length (mm) 920/36" 1,150/45" 1,450/57"
Max. Speed of Backgauge (m/min) 13.5 18 18
Table Height 35.5" 35.5" 35.5"
Net. Weight (lbs) 4,620 7,700 8,360
Length of Front table (mm) 749/29.5" 715/28.1" 730/28.7"
Length of Table (mm) 2,180/85.8" 2,490/98" 2,770/109.1"
Max. Clamp Pressure (kgs/Ibs) 3,500/7,700 4,500/9,900 5,600/12,320
Power/3Phase 220V 3KW/25A 4KW/30A 4KW/30A

S Series
MC-30-S MC-36-S MC-45-S MC-54-S
Cutting width (mm) 780/30.7" 920/36" 1,150/45" 1,370/54"
Max. Cutting Height (mm) 120/4.7" 130/5.1" 165/6.5" 165/6.5"
Max. Cutting Length (mm) 780/30.7" 920/36" 1,150/45" 1,450/57"
Max. Speed of Backgauge (m/min) 10 10 12 12
Table Height 35.5" 35.5" 35.5" 35.5"
Net. Weight (lbs) 3,960 4,620 7,700 8,360
Length of Front table (mm) 670/26.4" 749/29.5" 715/28.1" 730/28.7"
Length of Table (mm) 1950/76.8" 2180/85.8" 2490/98" 2770/109.1"
Max. Clamp Pressure (Ibs) 6,600 7,700 9,900 12,320
Max. Clamp Pressure (kgs) 3,000 3,500 4,500 5,600
Power/3Phase 220V 3KW/25A 3KW/25A 4KW/30A 4KW/30A
MC-61-S MC-65-S MC-73-S MC-86-S
Cutting width (mm) 1,550/61" 1,660/65" 1,860/73" 2,200/86"
Max. Cutting Height (mm) 165/6.5" 165/6.5" 165/6.5" 165/6.5"
Max. Cutting Length (mm) 1,550/61" 1,700/67" 1,950/77" 2,200/86.6"
Max. Speed of Backgauge (m/min) 12 12 12 12
Table Height 35.5" 35.5" 35.5" 35.5"
Net. Weight (lbs) 13,090 15,400 22,000 24,200
Length of Front table (mm) 750/29.5" 750/29.5" 750/29.5" 750/29.5"
Length of Table (mm) 2890/113.8" 3237/127.4" 3410/134.3" 3750/147.6"
Max. Clamp Pressure (Ibs) 13,420 13,420 15,730 15,730
Max. Clamp Pressure (kgs) 6,100 6,100 7,150 7,150
Power/3Phase 220V 5.5KW/40A 5.5KW/40A 7.5KW 11KW
