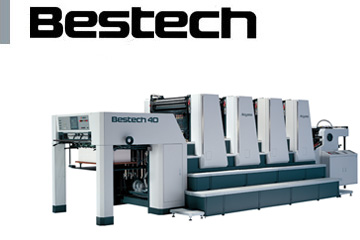

Bestech


Higher Quality, Higher Productivity, From The Most Advanced Technology.
Today's market requires that you offer your customers more while keeping production costs at a minimum. With the Bestech Series, Akiyama is meeting your need for efficiency in short-run production, and combines it with the value-added enhancements that provide speed, quality, and flexibility.



Stable high-speed feeding, accurate registration,
and smooth infeed on the widest range of stock

The pickup sucker is a piston type that is mechanically actuated, ensuring stabilized sheet feeding at operating speeds up to 13,000 iph. Height adjustments can be safely and easily made during the run.

Unique air separation feature lets you run virtually any stock - from lightweight stock to cardboard - at maximum speed.

The forwarding suckers can also be adjusted up or down, left or right, independently, providing positive and scratch-free feeding of sheets from lightweight stock to cardboard.

Non-stop feeder is standard

A tape slowdown mechanism reduces sheet speed by 40% to ease sheets into the front steps.

Venturi air gently assists sheet into the front headstops.

The swing mechanism has an upward motion allowing the swing to return to the front stops quickly after sheet transfer.

The result is longer lay time for sheet stabilization.

For special applications, optional features include static bars, air bars, and double sheet detector.




The Akiyama original cylinder configuration provides the following features:


Plate and blanket cylinders are normal size while the impression cylinder, which services two units has three working surfaces. The transfer cylinder has four working surfaces.

Sheet transport is enhanced by the large cylinders which subjects the sheet to less bending. By reducing bending, a wider range of stock thickness can be transported better than on smaller cylinders.

Large cylinders also permit printing four colors with only two transfers during the printing process, greatly reducing the possibility of distortion and marking.

The three-surface impression cylinder is large enough that the sheet is never in contact with two blankets at one time, further reducing distortion potential.

Delivery from the impression cylinder is made after the sheet is released from the last unit blanket. This feature eliminates distortion at the last unit and allows for Akiyama's "drumless" delivery.

Cylinder Grippers

Grippers and gripper bases are of ultra hardened steel for durability and accuracy of registration.

Needle bearings are used in the grippers on the impression and transfer cylinders, reducing friction between the gripper shaft and gripper holder.

The cylinder gripper tips are covered with a special material to prevent the possibility of a sheet slipping.




Control of ink/water balance

Proven Inker

The field tested and proven Akiyama Inker System is configured to provide optimum control of ink and water to the plate using an integrated continuous dampening system.

Large diameter form rollers are a key element in the success of the Akiyama system.

Improved ink distribution on the plate is achieved with the application of three oscillator rollers in contact with the super large form roller.

Dampening solution feed to the plate is controlled by the operator at the delivery.

Individual unit ink ductor roller controls are located on the delivery.

Temperture Controlled Inker

Ink train and plate temperature can be critical in some applications, especially when running waterless plates. In response, Akiyama offers a system that maintains proper temperature by circulating water through the ink oscillating rollers.

Automatic Ink Roller Wash-Up

Remotely Controlled by the Operator from the delivery panel, the Akiyama wash-up system is simple and saves time with control of solution application and wash-up tray.






Controls and functions for the operator's convenience

Akiyama Color Control(ACC)

The ACC console provides the operator with precise ink controls, lateral/circumferential register, storage of job information, and interface with other systems.

Control Panel

The Delivery Control Panel, In Addition to normal drive controls, includes as standard:

Unit selection of ink and water operation
Water feed controls and Water Flood Button
Feeder and impression off controls
Control of he variable speed delivery sheet slowdown roller
Volume controls for the delivery blowdown fans
Safety monitor for observation of press conditions
Ink ductor controls
Monitor for infeed, feedboard, and feeder





Versatility and efficiency with increased productivity

Bestech also offers the versatility and efficiency of aqueous or UV in-line coating.

Combined with Bestech's unique cylinder configuration, a sheet can be coated with no additional transfer points. Extended delivery is standard with the system, providing ample space for IR or UV drying equipment.

The patented doctor blade continually removes all unused coating from the form roller, while fresh coating is supplied from the pan roller. The result is consistently smoother laydown.

Plus, Bestech offers a coating unit that can be off line without requiring clean-up.

It allows you to run coated and uncoated jobs in any sequence.

Fine lateral adjustment is made from a control on the operator's side of the press, circumferential adjustment by a gear on the blanket cylinder. The nip adjustment between blanket and impression cylinders is easily regulated with Akiyama's unique worm gear mechanism.

The benefits provided by these system features include:

Increased product value with the ability to furnish higher gloss and additional scuff resistance.

Faster turn-around time due to the drying characteristics of aqueous coatings.

Increased productivity with the elimination of racking and obtaining a coating in the same pass with printing.

Environmental improvement with the reduction or elimination of offset powder.

One-touch removal of the coating pan for easy cleaning.





Meeting the industry need for short runs and high productivity


Non-Stop Feeder
The auxiliary sheet holder facilitates continuous sheet feeding during the print run.

Sucker Air-Speed Follow-Up Mechanism

Feeder Static Eliminator System
This system removes static electricity from the sheets as they are delivered from the feeder.

Suction-Tape Feeder Table

Anti-Curl System in the Infeed Section
Air is supplied via the opening of the infeed section to prevent the sheet from traveling beyond the specified position, while at the same time the gripper side of the sheet is flattened.

Remote Plate Cocking

Plate cocking for registration is precisely controlled from the console by digital electronics. This system cocks only the plate, not the plate cylinder - the same way an operator would.
U-cut Registration system

Register pins used in conjunction with aligned plate indents make the Akiyama registration system easy and extremely accurate.

Automatic Racking Board Inserter

Racking board insertion at high speeds by one operator is made easy with the automatic inserter.



Automatic Blanket Washer

The optional blanket washers, which are controlled from the delivery, position the cloth web and then wash the blanket.



Labor Saving Configurations

To better meet the needs of printers today, Akiyama offers different levels of automation. Regardless of the configuration chosen, the benefit is reduced makeready time, enhanced productivity, and higher quality.
Akiyama Color Control (ACC)

The ACC console provides the operator with the capability of adjusting ink and water balance and precise control of lateral/circumferential running register. The ACC computer uses plate scanner output and its own internal programs for refined color control.

Paper Size Preset System

Sheet size adjustments for the feeder separator, feedboard tail wheels, side guide, and delivery tail and side joggers are made from the console.
Impression preset system

Paper caliper input adjustments are controlled from the console.
INK Roller Automatic Washing

Individual unit ink roller wash-up functions can be selected from the delivery panel.
Register Punch

Manual or motorized optical plate register punch for aligning image to register pins.




28
Specifications/Model BT228 2 UNITS BT428 4 UNITS BT528 5 UNITS BT628 6 UNITS BT828 8 UNITS
Printing Speed 4,000-13,000 Sheets per hour
Max, Paper Size 20-1/2 x 28-3/8" (520 x 720 mm)
Min, Paper Size 9 x 13-3/4" (230 x 350 mm)
Max, Image Area 19-1/4 x 27-1/8" (490 x 690 mm)
Paper Thickness 0.0016 -0.024" (0.04 - 0.6 mm)
Plate Size 21-5/8 x 27-5/8" (550 x 700 mm)
Blanket Size 24-3/4 x 27-5/8" (630 x 700 mm)
Max. Feeder Capacity 32" (800mm)
Max. Deliverly Capacity 32" (800mm)
Diameter of Plate Cylinder 7-15/16 - 0.024" (201-0.6 mm)
Diameter of Blanket Cylinder 7-15/16 - 0.228" (201-5.8 mm)
Diameter of Impression Cylinder 23-3/4+0.016" (603+0.4 mm)
Machine Weight 19,400 lbs
8,800kg
33,900 lbs
15,400kg
46,800 lbs
21,300kg
48,400 lbs
22,000kg
63,100 lbs
28,600kg
Length 14'8"/4,475mm 19'2"/5,845mm 23'8"/7,220mm 23'8"/7,220mm 28'2"/8,590mm
Width 8'4" 2,540mm
Height 6'4" 1,908mm
Total Power 19.4kW 22.6kW 34.8kW 35.1kW 47.7kW

40
Specifications/Model BT240 2 UNITS BT440 4 UNITS BT540 5 UNITS BT640 6 UNITS BT840 8 UNITS
Printing Speed 4,000-13,000 Sheets per hour
Max, Paper Size 28-3/8 x 40-1/8" (720 x 1,020 mm)
Min, Paper Size 14-1/8 x 21-1/4" (360 x 540 mm)
Max, Image Area 28 x 40-1/8" (710 x 1,020 mm)
Paper Thickness 0.0016 -0.024" (0.04 - 0.6 mm)
Plate Size 31-1/2 x 40-3/4" (800 x1,030 mm)
Blanket Size 38-3/8 x 40-3/4" (975 x 1,035 mm)
Max. Feeder Capacity 45" (1,150mm)
Max. Deliverly Capacity 45" (1,150mm)
Diameter of Plate Cylinder 11.811 - 0.024" (300-0.6 mm)
Diameter of Blanket Cylinder 11.811 - 0.224" (300-5.7 mm)
Diameter of Impression Cylinder 35.433 +0.012" (900+0.3 mm)
Machine Weight 42,000 lbs
19,100kg
74,600 lbs
33,900kg
101,600 lbs
46,200kg
107,100 lbs
48,700kg
139,700 lbs
63,500kg
Length 20'4"/6,210mm 27'1"/8,260mm 33'9"/10,300mm 33'9"/10,300mm 40'3"/12,280mm
Width 11'5" 3,480mm
Height 7'8" 2,350mm
Total Power 40.7kW 54.5kW 70.4kW 71.2kW 86.1kW

44
Specifications/Model BT-244 BT-444 BT-544 BT-644
Printing Speed 4,000-12,000 Sheets per hour
Max, Paper Size 32-9/32 x 44-3/32" (820 x 1,120 mm)
Min, Paper Size 21-1/4 x 29-7/8" (540 x 760 mm)
Max, Image Area 31-1/2 x 44-3/32" (800 x 1,120 mm)
Paper Thickness 0.0016 -0.024" (0.04 - 0.6 mm)
Plate Size 35-7/16 x 44-1/2" (900 x1,130 mm)
Blanket Size 42-1/8 x 44-11/16" (1,070 x 1,135 mm)
Max. Feeder Capacity 47-1/4" (1,200mm)
Max. Deliverly Capacity 47-1/4" (1,200mm)
Diameter of Plate Cylinder 12.992" - 0.024" (330-0.6 mm)
Diameter of Blanket Cylinder 12.992" - 0.224" (330-5.7 mm)
Diameter of Impression Cylinder 38.976" +0.012" (990+0.3 mm)
Machine Weight 47,400 lbs
21,500kg
87,100 lbs
39,500kg
120,150 lbs
54,500kg
126,760 lbs
57,500kg
Length 21'11"/6,690mm 29'4"/8,940mm 36'8"/11,190mm 36'8"/11,190mm
Width 11'8" 3,600mm
Height 8'4" 2,550mm
Total Power 47.9kW 67.7kW 76.4kW 76.7kW


Standard From Akiyama

High pile non-stop feeder
High pile non-step delivery
Overshoot sheet detector
Side guide register and double sheet detectors
Independent drive sheet slowdown before infeed
Pneumatically operated impression on/off
Emergency impression off
Triple size impression cylinders
Quadruple size transfer cylinders
Cam-closed grippers
Cylinder mounted pin register system
Quick action plate clamps
Quick blanket mount system
Non-marking material on transfer cylinders
Continuous dampening system
Remote ink and water roller on/off
Remote water feed control
Remote sequential proofing control
Production button
Delivery paper jam detector
Blow down fans in the delivery
Sheet counter
Total impression counter
Safety Monitor
TV monitor at the delivery to monitor the infeed/feedboard/feeder
Automatic pressurized lubrication
Delivery tables
Delivery racking boards
Delivery racking support corners
Assorted tools and various spare parts
Oil drip pan
Akiyama Color Control(ACC) = A2

Options

In-line blanket coater with long delivery
Double or triple long deliveries
Extended frame with impression cylinder
Synchronous plate mounting system
Auto plate mounting system
Remote plate cocking system
Paper size pre-set system
Impression preset system
Automatic racking board inserter
Remote ink wash-up system
Feeder preloader devices
Auto centering for feeder
Board double sheet detector
Refrigerated water circulator
Powder spray unit
IR drying system
UV printing system
Temperature controlled inkers for UV or waterless printing
Static eliminator
Drive side workbench
Tape inserter
Register punch
Roller racks
Shadowless delivery grippers(standard on BCL)
Press raising kit
Demia plate scanner
Motorized optical register punch
Manual optical register punch
Ink agitators
Additional ink roller cores
Automatic blanket washer
