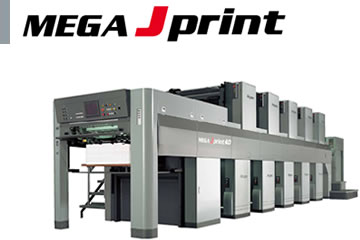

MEGA Jprint

MEGA Jprint Series Providing Outstanding Performance for 44-inch Applications

It has been 15 years since Akiyama developed the Jprint Series Press, the world's first single-pass sheet-fed press capable of printing on both sides of the sheet in multiple colors. Since then, the Jprint Series has achieved dramatic improvements in productivity and performance and has many new value-added features including a double-sided coater and Roll Feeder. In 2007 at the IGAS show held in Tokyo, Akiyama introduced the MEGA Jprint 40 series Perfector, a new model which brings together all of Akiyama's experience and expertise into a single machine. In response to many requests for a larger format press, Akiyama then developed the MEGA Jprint 44 series, 44-inch (32-1/4" x 44 1/16") Perfector.
Check out the performance of the MEGA Jprint 44 series - the new standard in 44-inch Perfectors.

Main Features of the MEGA Jprint 44 Series

A maximum printing speed of 15,000 sph. Use a suction-tape feeder to ensure a fast stable paper feeding.   Touch-panel screen allows operation to be controlled easily from the ACC operation stand also.
Paper transferred parallel to the delivery direction to eliminate unwanted paper movement. This ensures stable paper delivery/. A belt-type paper guide is also used to prevent rubbing or scratching.   Inker clutch available as option. This allows the inking drive for unused printing units to be cutout simply using the touch-panel in the delivery section.
Accelerated control of the ink key open-close speeds so that the input values from the Akiyama Color Control (ACC) system are instantly applied to the keys.   Environment-friendly design incorporates energy-saving and heat-resistant features.
An improved air-blower system to better prevent excessive ink emulsification and prevent roller wear.   Full Auto Plate Changer (FAPC) available as an option.
Double cam system used as the gripper opening/closing mechanism for the impression and transfer cylinders.   In-line densitometer or In-line spectrometer available as option.
Roll Feeder (RF) available as a feeder unit option.

Specifications

Specifications/Model Jp1p144 Jp2p244 Jp4p444 Jp5p544
Number of colors
1/1
2/2
4/4 5/5
Max. printing speed (sheets/hour)
15,000
15,000
13,000
12,000
Max. printing paper size (mm) 820 x 1,120
Min. printing paper size (mm)
540 x 760
Paper thickness (mm) 0.04 -0.2/0.06 - 0.3 (Option)
Effective printing area (mm) 810 x 1,120
Plate size (mm) 900 x 1,130
Blanket size (mm) 1,070 x 1,135
Feeder capacity (mm)
1,300
Delivery capacity (mm)
1,250
Total press length (mm) 6,428 7,751 10,397 11,720
Total press width (mm) 3,580
Press height (mm) 2,750
Press weight (kg) 17,500 27,500 47,500 57,500
Power consumption (kW) 54 64 96 99

* Product design and features are subject to change without notice due to ongoing technology updates and other product improvements.
* Speeds shown above reflect the performance available using combined technologies. Actual speeds may vary depending on the printing design and paper type.

The perfecting press, which has enjoyed the overwhelming support of its many users, has taken the next step in its evolution. We proudly introduce the MEGA Jprint, a printing press that achieves unprecedented levels of quality and productivity.
Akiyama developed the non-convertible, double-sided, multi-color, sheet-fed offset printing press Jprint in 1994, based on the concept of maintaining the high printing quality of a one-sided printing press while offering greater productivity and the quicker printing speed needed to satisfy tighter delivery schedules. More than ten years later, the market still demands small-lot printing capability from printing presses, and the demand for higher productivity is even stronger. Akiyama's MEGA Jprint was developed with the goal of achieving higher productivity and improved operability, and we have met that goal by drawing on the wealth of experience and know-how that Akiyama has accumulated over the years.

High Quality
The original cylinder configuration, which is based on an impression-to-impression transfer system, provides a degree of registration accuracy that's simply unbeatable. The digital workflow ensures reliable color management, so you can easily maintain quality control.

High Performance
The system features a newly developed, high-speed sucker head. This new delivery mechanism provides stable feeding and delivery even during high-speed operations. These are among the many functions that allow the MEGA Jprint to offer such unrivaled performance.

Factory Environment
The MEGA Jprint incorporates innovative technologies, but there is also considerable emphasis on environmental excellence. The MEGA Jprint comes standard with a range of automated, power- and labor-saving devices that reduce the burden of the operator. Indeed, the MEGA Jprint promises to provide a printing environment that is friendly not only to the environment but also to the people who operate it.





Condensing the years of know-how represented in Akiyama's original cylinder configurations, the MEGA Jprint is an ideal
perfecting press that pushes productivity efficiency to the highest level.

The market continues to demand ever-greater productivity from sheet-fed printing machines. Akiyama's MEGA Jprint solution answers that need. First, the MEGA Jprint boasts the enhanced durability of each mechanism, thereby supporting higher printing speeds. It also employs ergonomic designs and new technologies we've developed through our unrelenting quest for greater automation and more efficient use of energy. With these unique mechanisms and more, the MEGA Jprint opens a door to the infinite possibilities of the perfecting press. Thus Akiyama proudly presents its all-new MEGA Jprint, the culmination of our technological capabilities that promises to bring sustainable success to your business.

Non-Stop Feeder

The non-stop feeder ensures continuous sheet feeding during a print run by using the auxiliary paper tray.

Feeder Static Eliminator System

This system removes static electricity from the sheets as they are fed from the feeder.

Supersonic Double-Sheet Detection System

This system sends supersonic waves over the sheets delivered from the feeder, thereby detecting even small changes in sheet condition. If a double-sheet is detected, the system stops the feeder. The detection performance of the system has been dramatically improved.

Anti-Curl System in the Infeed Section

Air is supplied through an opening in the infeed section to prevent the sheet from traveling beyond the specified position, and at the same time the gripped side of the sheet is flattened.

Swing Fan-Out Prevention Mechanism

When the sheet is transferred from the swing to the transfer cylinder, its gripped end is straightened in order to prevent fanning as the sheet is printed.

Swing Air-Blower System

Air is blown onto the gripped end of the sheet while it is being transferred by the swing, and as a result the sheet is lifted and held during transfer. This has the added benefit of preventing the sheet from being scratched and marked by the swing gripper.

Transfer Cylinder Air-Blower System

Air is blown onto the transfer cylinder as it passes the sheet to the impression cylinder, thus preventing the sheet from wrapping itself around the transfer cylinder.

Special Impression Cylinder Jacket

Each impression cylinder is equipped with a special jacket. This jacket minimizes leftover ink, and as a result the problems commonly associated with ink buildup are eliminated.

Fan-Out Prevention Plate Lockup

This unique plate lockup, with its fan-out adjustment function, maximizes registration accuracy.

Blanket Cylinder Air-Blower System

This system evaporates the dampening solution that is transferred from the plate cylinder to the blanket cylinder, preventing the sheet from stretching due to the solution.

Continuous Dampening System

Akiyama's unique roller configuration helps produce a uniform water film over the surface of the plate, facilitating consistently high print quality.

Water-Fountain Roller Drive System

The seamless speed variation achieved by a motor drive, coupled with a follow-up roller that operates in unison with the speed of the main press, promises stable dampening throughout every operation.

Inker Air-Blower System

Air is blown onto the inking rollers, which is minimizing the emulsification to what the print job requires.

Automatic Ink Roller Wash-Up System

Each time a color is changed, cleaning solution is injected onto the ink rollers to clean them, after which the dirty cleaning solution is collected. All these steps are performed automatically, helping make job set-up more thorough and efficient.

Inker Temperature-Control System

Three temperature-control rollers are used to ensure the constant temperatures of the ink-roller and plate surface, and thereby achieve stable ink delivery.

Antistatic Delivery System

The delivery section is equipped with an electrical antistatic system for the effective removal of electrostatic buildup.

Sheet-Release Cam Speed-Alignment Mechanism

The speed of the sheet-release cam is synchronous with the printing speed. Moreover, a unique speed-control method allows the operator to make the correct paper-thickness setting to support any type of sheet.

Air Regulation System for Sheet Alignment

A special air-shower system and fan provide consistent sheet alignment, even when printing on very thin stock.

Delivery Slowdown Suction Wheels Mechanism (split-type suction wheels)

The slowdown suction wheels can be moved right and left according to the image on the reverse side of the sheet. Additionally, the wheels of different widths can be installed to suite the image layout.

Flood Button

Raising the speed of the water-fountain rollers increases the volume of dampening to prevent the spoilage of the printed surface and other problems associated with the drying of the sheet.





The MEGA Jprint is a new style perfecting press offering a number of advanced functions for the sake of greater efficiency
and higher quality.


Printing Speed of 15,000 sph

The model MEGA Jprint 4p440 achieves printing speeds of up to 15,000 sheets per hour!

Suction-Tape Feeder with Improved Sucker-Head Durability

The feeder table employs an air-suction tape that creates a vacuum to reliably pick up and transfer the sheet to the swing table at high speed. The table also comes with a newly developed sucker head. Greater overall rigidity of this system ensures stable sheet-feed even at very high speeds of operation.

Lower Power Consumption, Greater Heat Resistance

The energy-saving design of the MEGA Jprint incorporates measures to limit negative impact on the global environment.

New Operation Stand (ACC)

The ACC (Akiyama Color Control) operation stand supports higher processing speeds. In fact, the values entered from the stand are executed by the ink keys in half the time required on a traditional stand, or even less. This makes it easier to design a CMS (Color Management System) to allow printing jobs to go full-scale more quickly. Akiyama's original, simplified MIS is a standard feature. The plate data, ink-fountain data and various other inputs can be controlled for each job. When a repeat order is received, simply call up the past order to automatically restore the settings. Now all operation tasks can be performed via the touch panel, which makes operation easier than ever.

Additional Transfer Cylinders and Adoption of Belt-Type Sheet Guide

The delivery system has two additional transfer cylinders to reduce the unwanted movement of the sheet. The sheet-guiding endless belt protects the sheets from scratches and rub marks.

Detachable Slowdown Suction Wheels

An all-new structure of the slowdown suction wheel has been incorporated in the MEGA Jprint. The suction wheels can now be detached and attached along with the auxiliary suction wheels, while lateral movements are made easy with the crank handle.

Improved Roller Oscillation and Ink Air-Blow Method

The oscillation of the rollers has been improved to eliminate ghosting. Furthermore, the ink air-blow method has been modified to prevent the excessive emulsification of the ink while protecting the roller coating from peeling.

Inker Clutch (Optional)

The inking drive of a printing unit not currently being used for printing can be disengaged from the main power train through a simple operation on the touch panel, thus providing further energy savings. This mechanism also prevents the unnecessary wear of rollers not currently in use.

Full Auto Plate Changer (Optional)

You can also choose the optional FAPC (Full Auto Plate Changer). When the FAPC is installed, simply set the new plate on the plate guide, and all the required operations—from ejecting the previous plate to setting the new plate—will be performed automatically.

Double-Sided Coater (Optional)

The MEGA Jprint can be ordered with the DC (Double-sided Coater) specification, which comes with an inline coater commonly used on one-sided presses. By installing the double-sided coater, the amount of spray powder can be significantly reduced and the waiting time before the next process is practically eliminated. Again, Akiyama technology helps achieve quicker production so that even the tightest deadline can be met.
Chamber Coater
The chamber coater system, which uses anilox rollers, allows the doctor blade to maintain a uniform varnish surface and provide a varnish coating of constant thickness.
IR Drying System
The MEGA Jprint's drying system combines an IR dryer, a hot-air blower and an air-cooling unit.





The matchless printing quality—which surpasses what any one-sided press can offer—is proof of Akiyama's innovative technology.


Unitized Double-Sided Printing Mechanism

The top and bottom sides are printed by separate units, each of which consists of plate, blanket and impression cylinders. Thanks to unitized design, the MEGA Jprint readily answers diverse customer needs and applications.

Roller Configuration

Among the long list of standard features is a continuous dampening system that achieves uniform dampening of the plate surface. The four ink form rollers, each with a different size, provide accurate ink control.

Shock-Free System

The application of Akiyama's innovative "double-cam system" to the gripper open/close mechanism for the impression and transfer cylinders synchronizes the opening/closing of the grippers on the right and left sides during the sheet-transfer. This results in smoother sheet transfer, the prevention of fan-out and a degree of registration accuracy that no conventional system can offer.

Cylinder Configuration

The MEGA Jprint employs Akiyama's unique cylinder configuration, which is characterized by the use of single-size cylinders for all of the plate, blanket and impression cylinders. Moreover, Akiyama's impression-to-impression transfer system helps achieve the highest accuracy of registration. Each impression cylinder is equipped with a special ceramic jacket offering excellent dot reproduction. The jacket also prevents the unwanted attachment and accumulation of ink.

ACM (Akiyama Color Management)

Akiyama offers a selection of density measurement devices including the inline densitometer and the inline spectrophotometer, which scans the color bar of the printed sheet and measures the data for color management. The measured color data can then be used for the automatic feedback control of ink keys.

Pre-Inking System

Ink-Key Preset Function
The operator can use the measured percentage of image area to total plate area (or CIP3/CIP4 (PPF) data) to set an appropriate key opening according to the printed image.

Pre-Inking Function
The operator can apply an ink film to the ink rollers according to the printing image, and thereby produce nearly perfect color matching from the start of the print run.

Product System
A series of operations from sheet feed to high-speed printing can be started automatically with just the touch of a button.

Preset Counter
The MEGA Jprint is equipped with cumulative and preset counters. Another unique feature includes the count down preset counter to print predetermined number of job sheets.

Inking Control Function
The supply of ink is stopped prior to the completion of the production run, ensuring that any extra ink on the rollers is fully consumed.

Sheet-Off Function
Printing is completed in a manner that leaves no extra ink on the plate and blanket cylinders. So, in a small-lot production the next printing session can start right away without the user having to clean the blankets.





The MEGA Jprint's overwhelming printing speed and excellence of operation deliver the highest productivity.


Feeder

Stable Sheet Feed Mechanism
The MEGA Jprint features a newly developed, high-performance stream feeder and a rotary-valve center separator. The sheet-cocking adjustment dial makes it easy to adjust the sheet even while the cylinders are turning.

Accurate Registration System
The sheet slows down and stops at the head stop before being transferred. This provides highly stable sheet-gripper operation and serves to ensure accurate registration from one sheet to the next.

Delivery

Delivery Control Panel
A belt-type sheet-guide is provided to prevent the top and bottom sides of the sheet from being smudged or damaged after printing. Additionally, an air blow-down control system keeps the sheet from fluttering due to paper quality and printing speed, so sheet alignment is uniformly correct.

Slowdown Suction Wheels Ideal for Perfecting
The MEGA Jprint employs unique slowdown suction wheels and the air blow-down control system for stable sheet alignment. Consistency and quality are assured, even at the highest printing speeds.

Optimal Sheet Layout to Reduce Paper Waste
The MEGA Jprint features a one-side gripping system that takes advantage of the maximum image area to help reduce paper costs.

When Printing Eight Pages on A1-Size Sheets
The Jprint 40/44 Series, unlike a convertible perfector, lets you print eight A4 pages on both sides of an A1-size sheet. (Color bars can be added.)

Plate Cocking
The registration for each plate can be individually adjusted via the remote-control buttons on the ACC console. The range of adjustment for plate cocking is ±0.50 mm.

Cylinder Cocking
Plate registration can be fine-tuned for each unit using the remote-control buttons on the ACC console. The range of adjustment for cylinder cocking is ±0.15 mm.

Simultaneous Cleaning of Blanket and Impression Cylinders
When the impression cylinder is set and rotated simultaneously with the blanket cylinder, any ink, paper residue or other foreign matter adhering to the impression cylinder is removed by the cleaning solvent on the blanket and transferred to the contacting blanket cylinder, which is cleaned concurrently with the impression cylinder using a blanket "cleaning cloth." Because the cleaning cloth does not come into direct contact with the impression cylinder, the special ceramic jacket is spared from premature wear.





Akiyama's range of auxiliary printing systems can help your facility enjoy a printing environment that is more efficient,
trouble-free and environmentally friendly.


Simultaneous Cleaning of Blanket and Impression Cylinders

The MEGA Jprint uses a cleaning system designed for safety and environmental responsibility. It uses a roll of cleaning cloth impregnated with a low-VOC cleaning solution, so that environmental impact is minimized. Because the blanket cylinders and impression cylinders are cleaned simultaneously, the consumption of energy and resources is reduced.

Heat-Source Separation System

By providing outdoor units for the inker temperature-control system and the refrigerated water circulation system, the heat generated from these two systems can be discharged straight to the exterior of the plant. The elimination of the heat from such peripheral equipment not only improves the work environment but also lowers the costs associated with air-conditioning in the plant, etc.

Noise Reduction System

Pumps, compressors and blowers are centrally controlled for greatly reduced noise within the plant. The heat generated from the pumps can also be shut off as a means of maintaining ideal printing conditions.

Oil Cleaning System

Impurities are removed from the lubrication oil within the system so that it stays clean and works more effectively. This lowers maintenance costs, eliminates unexpected problems and maximizes the durable life of the press. Moreover, the oil cleaning system contributes to environmental protection by prolonging the life of the lubricant and reducing the amount of waste oil.

Alcohol-Free Printing

The new, chrome-plated roller of the continuous dampening system has good water receptivity, so a thin, uniform film of IPA-free solution can be formed across the entire width of the roller. The use of an alcohol-free dampening solution solves common environmental issues facing printing plants. Needless to say, the MEGA Jprint also supports water-free printing.

Power Savings

The MEGA Jprint offers a production capacity equivalent to that of two or more one-sided presses combined, but its power consumption is only about 55% of the power that two one-sided presses would require.

Green Standard (Sheet-Fed Printing)

Suppression of VOC Generation
Suppress VOC generation from dampening solution
Suppress VOC generation from cleaning solution


Akiyama is working to save energy and resources while reducing noise and vibration in the printing process.

Akiyama promotes efforts to reduce waste generation and drive resource recycling.

*Green Standard
The "Green Standard of the Offset Printing Services" is a list of guidelines published by the Japan Printing Industry Federation. It defines the rules that govern the environmental measures implemented by printing companies.

Job Definition Format

Total optimization of printing workflow
The JDF digital workflow format was developed for the standardization of all printing processes. Now a common standard, it was established as a means for communicating the CIP4 data needed to enhance the links among separate processes.

By combining the JDF format with the mission-critical management system MIS (Management Information System), we are able to share information resources between the management system and the production system.

Akiyama employs a JDF/JMF conversion program between the printing press and MIS to build an integrated system workflow capable of ensuring the highest overall utility and facilitate the detailed management of information in coordination with the MIS.

The result data of each printing press is sent to and stored in the server in real time. Through the use of such data, all printing machines can be monitored in terms of their daily operation time, rate of utilization, number of sheets printed, number of colors used and other specific parameters, while the progress of each job can also be tracked in units of time.






40" Press, Standard Type

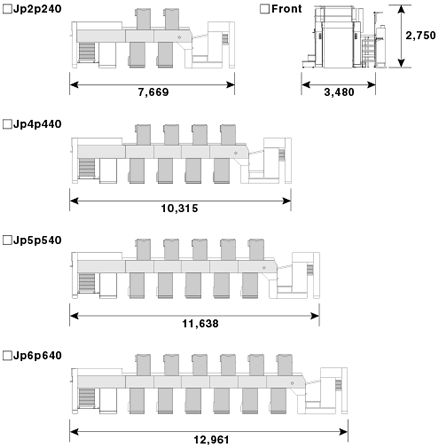

Specifications/Model Jp2p240 Jp4p440 Jp5p540 Jp6p640
Number of colors
2/2
4/4
5/5 6/6
Max. printing speed (sheets/hour)
15,000
15,000
14,000
13,000
Max. sheet size (mm) 720 x 1,030
Min. sheet size (mm)
360 x 540
Paper thickness (mm) 0.04 -0.2/0.06 - 0.3 (Option)
Max. image area (mm) 710 x 1,020
Plate size (mm) 800 x 1,030
Blanket size (mm) 975 x 1,035
Max. feeder pile height (mm)
1,300
Max. delivery pile height (mm)
1,250
Press length (mm) 7,669 10,315 11,638 12,961
Press width (mm) 3,480
Press height (mm) 2,750
Press weight (kg) 24,900 42,900 51,900 60,900
Power requirements (kW) 58 87 90 94
*Machine design and features are subject to change without notice for the purpose of product improvement and technological progress.
*The stated speed indicates machanically feasible capabilities. Actual speed may vary, depending on the printing image and paper type.




40" Press, DC (Double-Sided Coater) Type

Specifications/Model Jp2p240DC Jp4p440DC Jp5p540DC Jp6p640DC
Number of colors
2/2
4/4
5/5 6/6
Max. printing speed (sheets/hour)
15,000
15,000
14,000
13,000
Max. sheet size (mm) 720 x 1,030
Min. sheet size (mm)
360 x 540
Paper thickness (mm) 0.04 -0.2/0.06 - 0.3 (Option)
Max. image area (mm) 710 x 1,020
Plate size (mm) 800 x 1,030
Blanket size (mm) 975 x 1,035
Max. feeder pile height (mm)
1,300
Max. delivery pile height (mm)
1,250
Press length (mm) 12,171 14,817 16,140 17,463
Press width (mm) 3,480
Press height (mm) 2,750
Press weight (kg) 44,500 62,500 71,500 80,500
Power requirements (kW) 60 89 92 96
